* Prestressed for enhanced structural strength
* Reduces timber formwork by up to 100%
* Faster installation and reduced construction time
* Lightweight compared to conventional solid slabs
* Suitable for long-span suspended flooring systems
* Factory-produced for consistent quality and precision
* Reduces overall labor and material costs
* Durable and crack resistant
Prestressed T-Beam with Infill Block
Ideal for Beam-and-Block Suspended Flooring Systems The precast T-beam is a prestressed inverted T-shaped concrete structural component designed for modern …
Slab

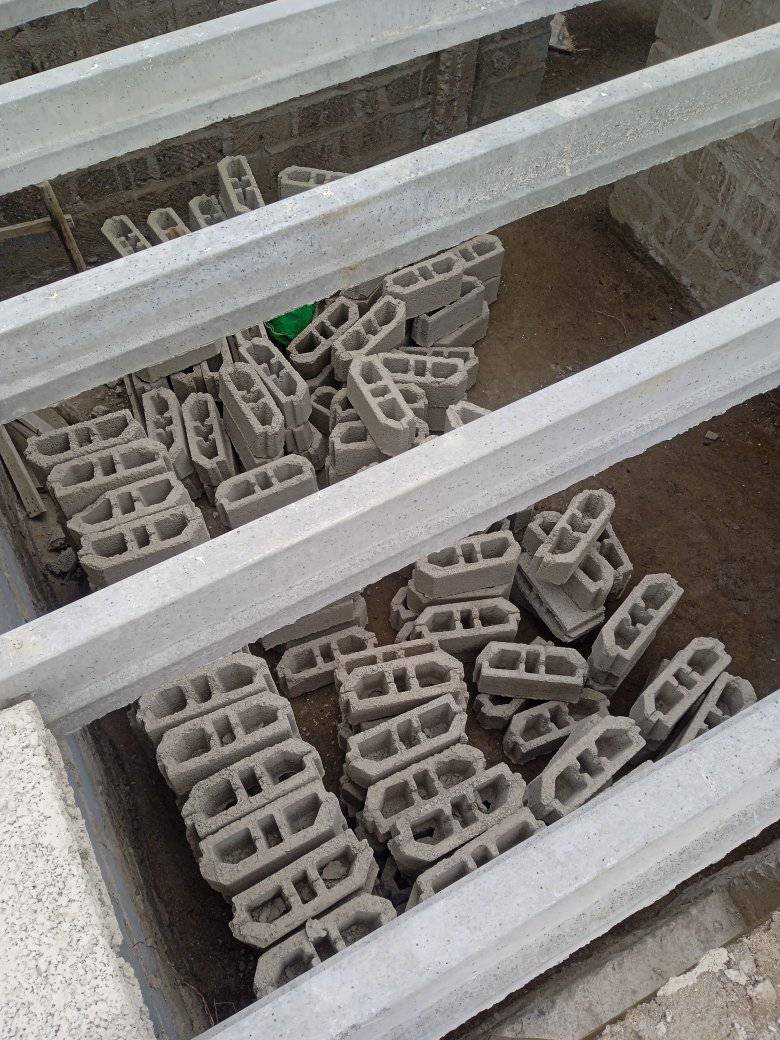

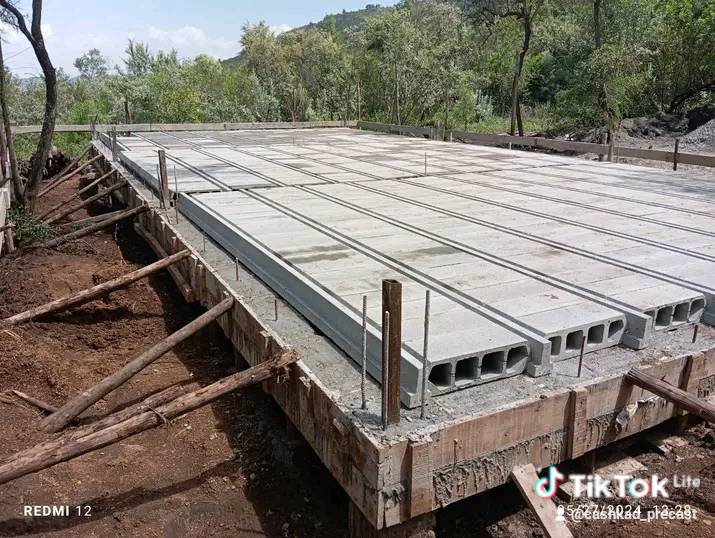

Prestressed T-Beam with Infill Block
Ideal for Beam-and-Block Suspended Flooring Systems The precast T-beam is a prestressed inverted T-shaped concrete structural component designed for modern suspended floor and roof slab construction systems. It serves as the primary load-bearing joist in beam-and-block flooring, providing strong structural support while significantly reducing construction time, labor, and material costs compared to conventional solid slab construction.
The system eliminates the need for excessive timber formwork and is widely used in residential, commercial, and multi-storey construction projects.
- Faster project completion
- Reduced construction costs
- Modern and durable floor construction solutions
Specifications
| Beam Type | Prestressed precast inverted T-beam |
|---|---|
| Base Width | 119 mm |
| Weight | Approx. 30 kg per linear meter |
| Reinforcement | High-tensile prestressed steel tendons |
| Tendon Size | Typically 5 mm strands |
Features
Applications
* Beam-and-block suspended flooring systems
* Residential house construction
* Apartment buildings
* Commercial structures
* Upper floor slab systems
* Elevated foundations
* Roof slab systems
* Multi-storey construction projects
